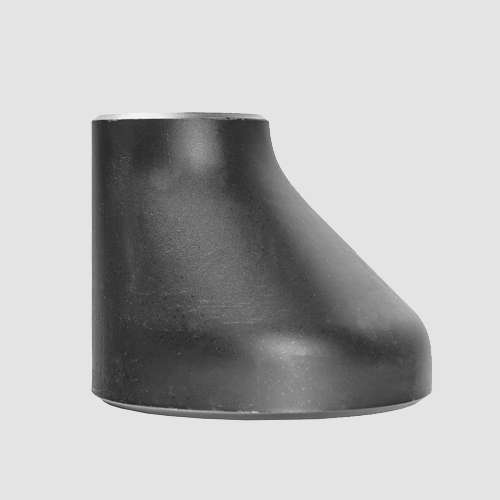

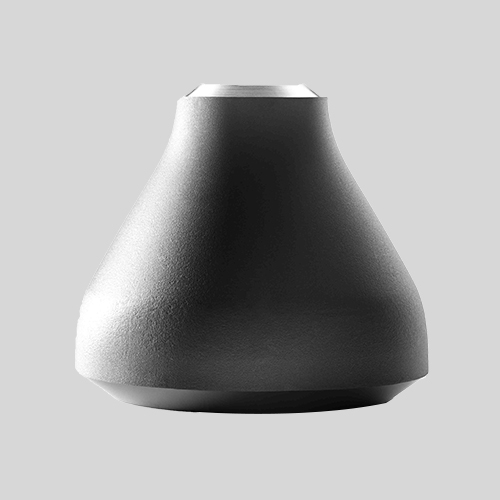

Outside Diameter
- Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (24″～60″)
Wall Thickness
- 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Manufacturing Standards
- ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408, SH3409, JIS B2311/2220, DIN2617/2616/2615
Material
- ASTM A403 WP304, 304L, 304H, 309, 310, 316, 316L, 317L, 321, 347
- 20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
- 16Mn, ASTM A420 WPL3, A420 WPL6
- ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, WB36, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV
|
Nominal Pipe Size(NPS)
|
Outside Diameter at Bevel |
End to end
|
|
| Large End | Small End | ||
| 3/4×1/2 | 26.7 | 21.3 | 38.1 |
| 3/4×3/8 | 17.3 | ||
| 1×3/4 | 33.4 | 26.7 | 50.8 |
| 1×1/2 | 21.3 | ||
| 1-1/4×1 | 42.2 | 33.4 | 50.8 |
| 1-1/4×3/4 | 26.7 | ||
| 1-1/4×1/2 | 21.3 | ||
| 1-1/2×1-1/4 | 48.3 | 42.2 | 63.5 |
| 1-1/2×1 | 33.4 | ||
| 1-1/2×3/4 | 26.7 | ||
| 1-1/2×1/2 | 21.3 | ||
| 2×1-1/2 | 60.3 | 48.3 | 76.2 |
| 2×1-1/4 | 42.2 | ||
| 2×1 | 33.4 | ||
| 2×3/4 | 26.7 | ||
| 2-1/2×2 | 73 | 60.3 | 88.9 |
| 2-1/2×1-1/2 | 48.3 | ||
| 2-1/2×1-1/4 | 42.2 | ||
| 2-1/2×1 | 33.4 | ||
| 3×2-1/2 | 88.9 | 73 | 88.9 |
| 3×2 | 60.3 | ||
| 3×1-1/2 | 48.3 | ||
| 3×1-1/4 | 42.2 | ||
| 3-1/2×3 | 101.6 | 88.9 | 101.6 |
| 3-1/2×2-1/2 | 73 | ||
| 3-1/2×2 | 60.3 | ||
| 3-1/2×1-1/2 | 48.3 | ||
| 3-1/2×1-1/4 | 42.2 | ||
| 4×3-1/2 | 114.3 | 101.6 | 101.6 |
| 4×3 | 88.9 | ||
| 4×2-1/2 | 73 | ||
| 4×2 | 60.3 | ||
| 4×1-1/2 | 48.3 | ||
| 5×4 | 141.3 | 114.3 | 127 |
| 5×3-1/2 | 101.6 | ||
| 5×3 | 88.9 | ||
| — | — | — | — |
| 56×40 | 1016 | ||
| 60×56 | 1524 | 1422 | 711.2 |
| 60×52 | 1321 | ||
| 60×48 | 1219 | ||
| 60×44 | 1118 | ||
GB/T12459-2005, ANSI B16.9(in mm）*Wellgrow’s Standard.
