Outside Diameter
- Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)
Wall Thickness
- 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Manufacturing Standards
- ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408, SH3409, JIS B2311/2220, DIN2617/2616/2615
Material
- 20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
- 16Mn, ASTM A420 WPL3, A420 WPL6
- ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, WB36, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV
|

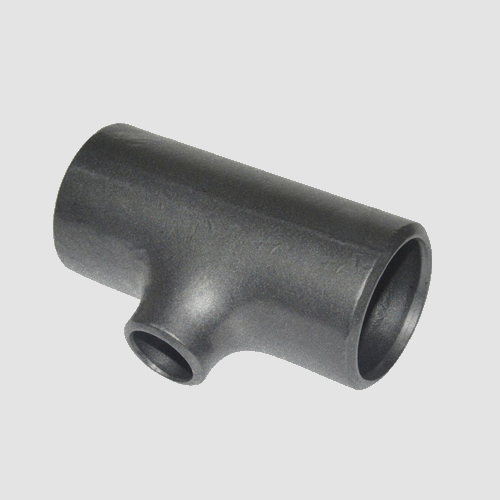

Nominal Pipe Size (NPS)
|
Outside Diameter At Bevel D | Center to End | ||
| Run | Outlet | Run C | Outlet(1) M | |
| 1/2×1/2 | 21.3 | 21.3 | 25.4 | 25.4 |
| 1/2×3/8 | 17.1 | 25.4 | ||
| 1/2×1/4 | 13.7 | 25.4 | ||
| 3/4×3/4 | 26.7 | 26.7 | 28.4 | 28.4 |
| 3/4×1/2 | 21.3 | 28.4 | ||
| 3/4×3/8 | 17.1 | 28.4 | ||
| 1×1 | 33.4 | 33.4 | 38.1 | 38.1 |
| 1×3/4 | 26.7 | 38.1 | ||
| 1×1/2 | 21.3 | 38.1 | ||
| 1-1/4×1-1/4 | 42.2 | 42.2 | 47.8 | 47.8 |
| 1-1/4×1 | 33.4 | 47.8 | ||
| 1-1/4×3/4 | 26.7 | 47.8 | ||
| 1-1/4×1/2 | 21.3 | 47.8 | ||
| 1-1/2×1.1/2 | 48.3 | 48.3 | 57.2 | 57.2 |
| 1.1/2×1-1/4 | 42.2 | 57.2 | ||
| 1-1/2×1 | 33.4 | 57.2 | ||
| 1-1/2×3/4 | 26.7 | 57.2 | ||
| 1-1/2×1/2 | 21.3 | 57.2 | ||
| 2×2 | 60.3 | 60.3 | 63.5 | 63.5 |
| 2×11/2 | 48.3 | 60.5 | ||
| 2×11/4 | 42.2 | 57.2 | ||
| 2×1 | 33.4 | 50.8 | ||
| 2×3/4 | 26.7 | 44.4 | ||
| 2×1/2 | 21.3 | |||
| 2-1/2×2-1/2 | 73 | 73 | 76.2 | 76.2 |
| 2-1/2×2 | 60.3 | 69.8 | ||
| 2-1/2×1-1/2 | 48.3 | 66.5 | ||
| 2-1/2×1-1/4 | 42.2 | 63.5 | ||
| 2-1/2×1 | 33.4 | 57.2 | ||
| 3×3 | 88.9 | 88.9 | 85.9 | 85.9 |
| 3×2-1/2 | 73 | 82.6 | ||
| 3×2 | 60.3 | 76.2 | ||
| 3×1-1/2 | 48.3 | 73.2 | ||
| 3×1-1/4 | 42.2 | 69.8 | ||
| 3×1 | 33.4 | |||
| 3-1/2×3-1/2 | 101.6 | 101.6 | 95.2 | 95.2 |
| — | — | — | — | — |
| 76×64 | 1626 | 1245 | ||
| 76×60 | 1524 | 1219 | ||
| 76×56 | 1422 | 1168 | ||
| 76×52 | 1321 | 1118 | ||
| 76×48 | 1219 | 1067 | ||
| 80×80 | 2032 | 2032 | 1499 | 1397 |
| 80×76 | 1930 | 1372 | ||
| 80×72 | 1829 | 1346 | ||
| 80×68 | 1727 | 1321 | ||
| 80×64 | 1626 | 1295 | ||
| 80×60 | 1524 | 1270 | ||
| 80×56 | 1422 | 1219 | ||
| 80×52 | 1321 | 1168 | ||
| 80×48 | 1219 | 1118 | ||
SS SP75 ANSI B16.9(in mm), * Wellgrow’s standard.
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
