Outside Diameter
- Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～72″)
Wall Thickness
- 2mm – 50mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Manufacturing Standards
- ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408, SH3409, JIS B2311/2220, DIN2617/2616/2615
Material
- 20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70,
- ASTM A420 WPL3, A420 WPL6
- ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV
|
Nominal Pipe Size(NPS)
|
Outside Diameter at Bevel |

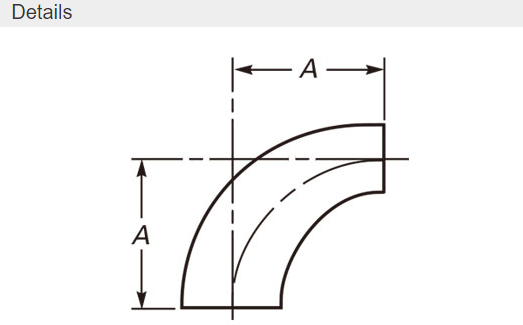

Center-to-End,A
|
|
| Large End | Small End | ||
| 2×1½ | 60.3 | 48.3 | 76 |
| 2×1¼ | 60.3 | 42.2 | 76 |
| 2×1 | 60.3 | 33.4 | 76 |
| 2½×2 | 73 | 60.3 | 95 |
| 2½×1½ | 73 | 48.3 | 95 |
| 2½×1¼ | 73 | 42.2 | 95 |
| 3×2½ | 88.9 | 73 | 114 |
| 3×2 | 88.9 | 60.3 | 114 |
| 3×1½ | 88.9 | 48.3 | 114 |
| 3½×3 | 101.6 | 88.9 | 133 |
| 3½×2½ | 101.6 | 73 | 133 |
| 3½×2 | 101.6 | 60.3 | 133 |
| 4×3½ | 114.3 | 101.6 | 152 |
| 4×3 | 114.3 | 88.9 | 152 |
| 4×2½ | 114.3 | 73 | 152 |
| 4×2 | 114.3 | 60.3 | 152 |
| 5×4 | 141.3 | 114.3 | 190 |
| 5×3½ | 141.3 | 101.6 | 190 |
| 5×3 | 141.3 | 88.9 | 190 |
| 5×2½ | 141.3 | 73 | 190 |
| 6×5 | 168.3 | 141.3 | 229 |
| 6×4 | 168.3 | 114.3 | 229 |
| 6×3½ | 168.3 | 101.6 | 229 |
| 6×3 | 168.3 | 88.9 | 229 |
| 8×6 | 219.1 | 168.3 | 305 |
| 8×5 | 219.1 | 141.3 | 305 |
| 8×4 | 219.1 | 114.3 | 305 |
| 10×8 | 273 | 219.1 | 381 |
| 10×6 | 273 | 168.3 | 381 |
| 10×5 | 273 | 141.3 | 381 |
| 12×10 | 323.8 | 273 | 457 |
| 12×8 | 323.8 | 219.1 | 457 |
| 12×6 | 323.8 | 168.3 | 457 |
| 14×12 | 355.6 | 323.8 | 533 |
| 14×10 | 355.6 | 273 | 533 |
| 14×8 | 355.6 | 219.1 | 533 |
| 16×14 | 406.4 | 355.6 | 610 |
| 16×12 | 406.4 | 323.8 | 610 |
| 16×10 | 406.4 | 273 | 610 |
| 18×16 | 457 | 406.4 | 686 |
| 18×14 | 457 | 355.6 | 686 |
| 18×12 | 457 | 323.8 | 686 |
| 18×10 | 457 | 273 | 686 |
| 20×18 | 508 | 457 | 762 |
| 20×16 | 508 | 406.4 | 762 |
| 20×14 | 508 | 355.6 | 762 |
| 20×12 | 508 | 323.8 | 762 |
| 20×10 | 508 | 273 | 762 |
| 24×22 | 610 | 559 | 914 |
| 24×20 | 610 | 508 | 914 |
| 24×18 | 610 | 457 | 914 |
| 24×16 | 610 | 406.4 | 914 |
| 24×14 | 610 | 355.6 | 914 |
| 24×12 | 610 | 323.8 | 914 |
GENERAL NOTE: All dimensions are in millimeters.
