Outside Diameter
- Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Wall Thickness
- 2mm – 50mm/ SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Manufacturing Standards
- ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408, SH3409, JIS B2311/2220, DIN2617/2616/2615
Material
- 20#, 20G,Q235-A, ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
- 16Mn, ASTM A420 WPL3, A420 WPL6
- ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, WB36, 12CrMo, 15Cr5Mo, 1Cr5Mo, 12Cr1MoV
|
Nominal Pipe Size(NPS)
|
Outside Diameter at Bevel D
|

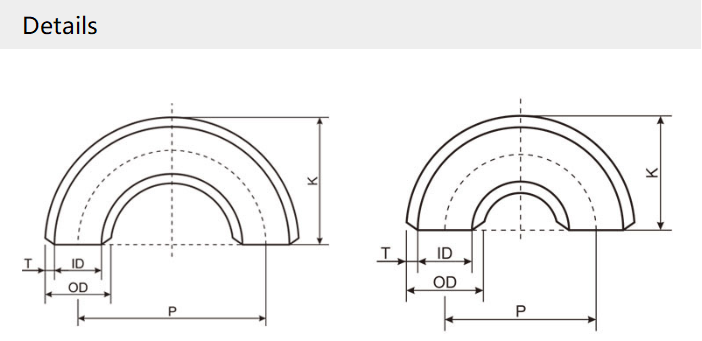

Long Radius Elbows | Short Radius Elbows | ||
| Center to Center P | Back to Face K | Center to Center P | Back to Face K | ||
| 1/2 | 21.3 | 76.2 | 47.8 | — | — |
| 3/4 | 26.7 | 76.2 | 50.8 | — | — |
| 1 | 33.4 | 76.2 | 55.6 | 50.8 | 41.1 |
| 1-1/4 | 42.2 | 95.2 | 69.8 | 63.5 | 52.3 |
| 1-1/2 | 48.3 | 114.3 | 82.6 | 76.2 | 62 |
| 2 | 60.3 | 152.4 | 106.4 | 101.6 | 81 |
| 2-1/2 | 73 | 109.5 | 131.8 | 127 | 100.1 |
| 3 | 88.9 | 228.6 | 158.8 | 152.4 | 120.7 |
| 3-1/2 | 101.6 | 266.7 | 184.2 | 177.8 | 139.7 |
| 4 | 114.3 | 304.8 | 209.6 | 203.2 | 158.8 |
| 5 | 141.3 | 381 | 261.9 | 254 | 196.9 |
| 6 | 168.3 | 457.2 | 312.7 | 304.8 | 236.5 |
| 8 | 219.1 | 609.6 | 414.3 | 406.4 | 312.7 |
| 10 | 273.1 | 762 | 517.7 | 508 | 390.7 |
| 12 | 323.9 | 914.4 | 619.3 | 609.6 | 466.9 |
| 14 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 18 | 457.2 | 1371.6 | 914.4 | 914.4 | 685.8 |
| 20 | 508 | 1524 | 1016 | 1016 | 762 |
| 22 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
